STANDARD FEATURES:
![]() |

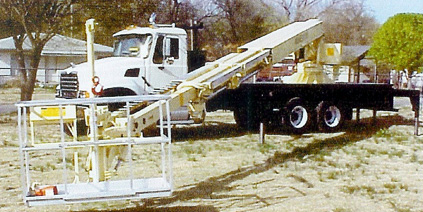

Power Leveling and Rotating 2 man aluminum 24″ X 60″ basket |
![]() |
All functions pressure relieved for a balanced system. |
![]() |
Joystick proportional controls in basket |
![]() |
Hydraulic powered self-leveling basket |
![]() |
Remote engine throttle, and engine start and stop from the base and basket |
![]() |
Hydraulic cylinders for extension (no cables), Dual extension cylinders for main tubes. |
![]() |
All hydraulic for smooth three function control at the same time |
![]() |
Rotation motor direct coupled to gearbox |
![]() |
PTO powered hydraulic pump with electric shift. |
![]() |
All operations can run at the same time |
![]() |
Power retract by hydraulic cylinders |
![]() |
360 degree working radius |
![]() |

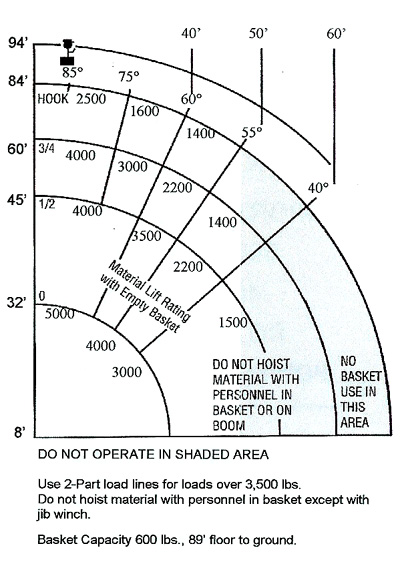

Heavy Duty lift capacity |
![]() |
All Hydraulic powered extension and retraction |
![]() |
Quick connect load line to convert from service to crane lifting |
![]() |
Rotation drive with adjustment collar for exacting mesh to bull gear |
![]() |
Dual, single stage elevation cylinder, double acting |
![]() |
5000 lb. rated load line |
OPTIONS INCLUDE SUCH GREAT FEATURES AS:
110 Volt in basket
Welding leads in basket
Auxiliary hydraulic jib winch in the basket 400 Lbs. rated
Air or power washer leads in basket
MINIMUM TRUCK SPECIFICATIONS:
14,000 Lb. Front Axle, 34,000 Rear Tandem Axles
48,000 G.V.W.:169″ CA: 241″WB
Truck Frame – 2,000,000 RBM
Front and Rear outrigger stabilizers required
- NON INSULATED – ELECTROCUTION HAZARD
STATE & FEDERAL REGULATIONS REQUIRE CERTAIN CLEARANCES OF ELECTRICAL POWER LINES
