Combination SERVICE UNIT & HEAVY DUTY CRANE

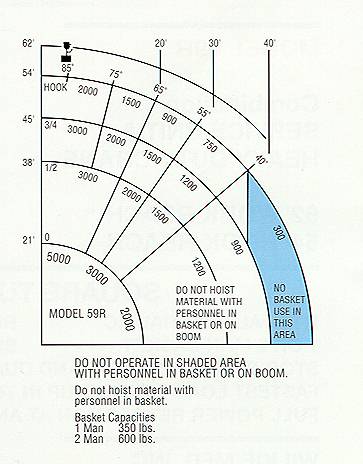

62′ WORK REACH 54′ HOOK REACH
SQUARE TUBE BOOM
P.T.O., ALL HYDRAULIC, REMOTE CONTROLS
1 OR 2 MAN BASKET, SELF LEVELING W/CYL. LOCK
STOP-START-THROTTLE AND DUAL EMERGENCY VALVES FASTEST LOAD LINE RIG-UP IN THE INDUSTRY & SELF STORING FULL POWER RETRACTION AT ANY ANGLE
Hi-Performance Multi-Purpose Lift

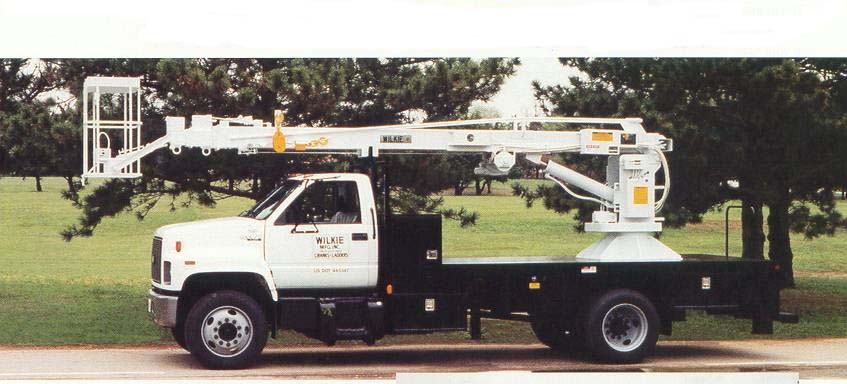

HI-PERFORMANCE MODEL 59R REMOTE CONTROLLED
FEATURES: Design and mechanical characteristics especially combined for the sign servicing industry. Wilkie Mfg. L.L.C. utilizes stock commercial components in the fabrication of its products, ensuring you of readily available parts. The rugged features, reliable operation and simple maintenance make Wilkie Cranes profitable for their owners. We offer a full set of optional equipment to complete your package, so it is immediately ready to put to work upon arrival at your plant.
Full Remote control at workman’s basket of elevation, extension, rotation engine throttle and engine start/stop
All 3 functions will operate at same time and at full speed
Full power retraction at any angle
All hydraulic powered for smooth, precise, control
All square tube boom for increased rigid support
1 Man work basket-standard-steel frame, hydraulic cylinders, self-leveling (2 man option)
Quick connect load line to convert from personnel lift to material lifting
360° non-continuous rotation *Option for continuous rotate
3 Section aluminum ladders attached to boom *Option
Wide spread Hydraulic outriggers or Manual or Manual/Hydraulic split * 3 options
Optional welding leads from base to basket
Optional 110V remote cord from base to basket
Ball bearing slewing ring turntable
Rotation drive, totally enclosed with adjustment collar for exacting mesh to bull gear
Rotation motor direct coupled to Gear Box
All functions pressure relieved for balanced system
Single stage cylinder elevation, double acting power down, pressure relieved
Single stage cylinder main extension, double acting power retracting
